Η μητρική κάρτα Asus ROG Strix Z790-I Gaming WiFi είναι κατάλληλη για mini ITX συστήματα και διαθέτει socket 1700 και υποστήριξη για DDR5 μνήμες. Είναι σχεδιασμένη για gaming και έχει ενσωματωμένο WiFi. Έχει επίσης ενσωματωμένα LED φωτιστικά στοιχεία και πολλά άλλα χαρακτηριστικά που την καθιστούν μια εξαιρετική επιλογή για τους λάτρεις των παιχνιδιών και όχι μόνο.

Xαρακτηριστικά

• CPU
  Intel® Socket LGA1700 for 13th Gen Intel®
  Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
  Processors
  Supports Intel® Turbo Boost Technology 2.0
  and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support
  list.
  ** Intel® Turbo Boost Max Technology 3.0
  support depends on the CPU types.
• Memory
  2 x DIMM, Max. 96GB, DDR5
  7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
  5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile
  (XMP)
  OptiMem II
  * We recommend active airflow to ensure beter memory performance
  * Supported memory types, data rate(Speed),
  and number of DRAM modules vary depending on the CPU and memory configuration,
  for more information refer to www.asus.com for memory support list.
  * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
• Graphics
  1 x HDMI® port***
  2 x Intel® Thunderbolt™ 4 ports (USB
  Type-C®) support DisplayPort and Thunderbolt™ video outputs****
  * Graphics specifications may vary between
  CPU types. Please refer to www.intel.com for any updates.
  *** Supports 4K@60Hz as specified in HDMI
  2.1.
  **** VGA resolution support depends on
  processors' or graphic cards' resolution.
• Expansion Slots
  Intel® 13th & 12th Gen Processors*
  1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
  * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  A resolution support depends on processors'
  or graphic cards' resolution.
• Storage
  Total supports 2 x M.2 slots and 2 x SATA
  6Gb/s ports
  Intel® 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2280 (supports
  PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
  M.2_2 slot (Key M), type 2242/2260/2280
  (supports PCIe 4.0 x4 mode)
  2 x SATA 6Gb/s ports****
  *** M.2_1 comes from Intel® Z790 Chipset
  when switched to PCIe 4.0 x4 mode
  **** Install ROG FPS-II Card to support 2 x
  SATA 6Gb/s ports.
  2 x SATA 6Gb/s ports****
  *AMD RAIDXpert2 Technology supports both
  NVMe RAID 0/1 and SATA RAID 0/1.
  **** Install ROG FPS-II Card to support 2 x
  SATA 6Gb/s ports
• Ethernet
  1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.3
  * WiFi 6E 6GHz regulatory may vary between
  countries, and function will be ready in Windows 11 or later.
• USB
  Rear USB (Total 9 ports)
  2 x Thunderbolt™ 4 port(s) (2 x USB
  Type-C®)
  1 x USB 3.2 Gen 2x2 port(s) (1 x USB
  Type-C®)
  3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
  1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
  2 x USB 2.0 port(s) (2 x Type-A)
  Front USB (Total 3 ports)
  1 x USB 3.2 Gen 2x2 connector supports 1
  USB Type-C®
  1 x USB 3.2 Gen 1 header(s) support(s) 2
  additional USB 3.2 Gen 1 ports
  ROG STRIX HIVE (Total 2 ports)
  1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
  1 x USB 2.0 port(s) (1 x Type-A)
  ROG FPS-II Card (Total 3 ports)
  2 x USB 2.0 header(s) additional 3 USB 2.0
  ports**
• Audio
  ROG High Definition Audio CODEC ALC4050
   - Supports: Jack-detection
   - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
   - Supports up to 32-Bit/384 kHz playback
  Audio Features
  - ROG Hyper-Grounding Technology
  - ESS® SABRE9260Q DAC
  - Silver-plated audio jacks
  - Optical S/PDIF out port & USB Type-C®  port with indepent power solution
  *** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.

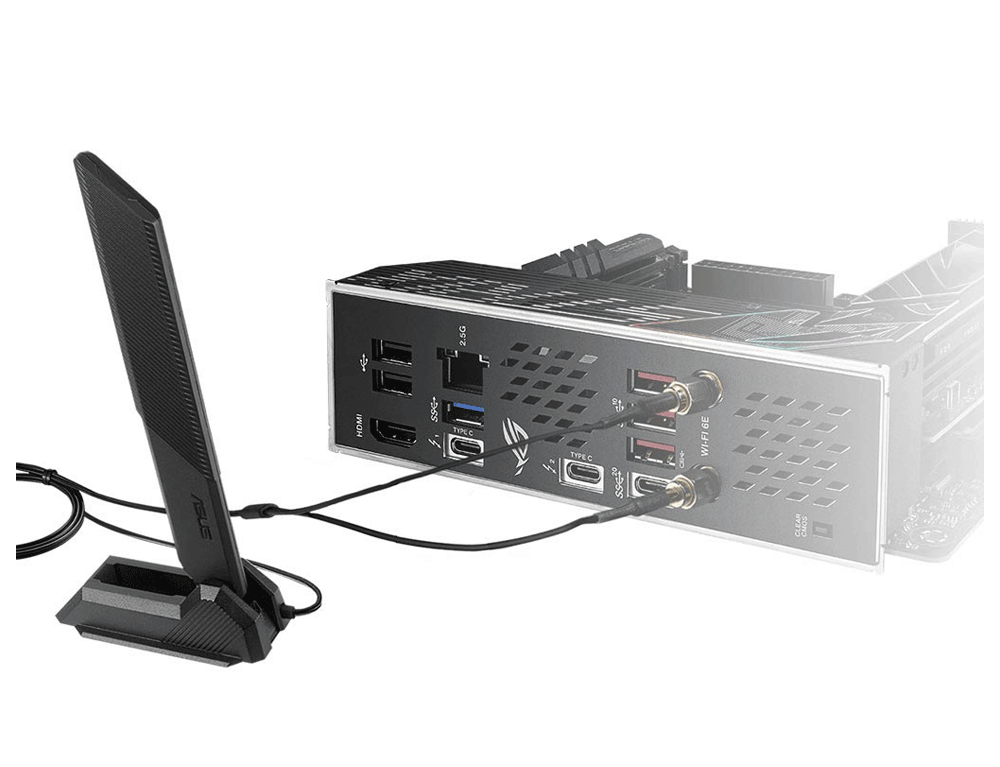

  Back Panel I/O Ports
  2 x Thunderbolt™ 4 USB Type-C® port(s)
  1 x USB 3.2 Gen 2x2 port(s) (1 x USB
  Type-C®)
  3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
  (supports ROG STRIX HIVE)
  1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
  2 x USB 2.0 port(s) (2 x Type-A)
  1 x HDMI® port
  1 x Wi-Fi Module
  1 x Intel® 2.5Gb Ethernet port
  1 x Clear CMOS button
• Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header(s)
  1 x 4-pin AIO Pump header(s)
  1 x 4-pin Chassis Fan header(s)
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  USB
  1 x USB 3.2 Gen 2x2 connector (support(s)
  USB Type-C® )
  1 x USB 3.2 Gen 1 header(s) support(s) 2
  additional USB 3.2 Gen 1 ports
  Miscellaneous
  1 x Addressable Gen 2 header(s)
  1 x Aura RGB header(s)
  1 x Thermal Sensor header
  2 x USB Type-C® connectors to Install ROG
  FPS-II card
  ROG FPS-II card
  2 x SATA 6Gb/s ports
  1 x CPU Over Voltage jumper
  1 x Thermal Sensor header
  1 x Front Panel header
  1 x Alternative PCIe Mode switch
  2 x USB 2.0 header(s) support(s) additional
  3 USB 2.0 ports
• Special Features
  Extreme Engine Digi+
  - 5K Black Metallic Capacitors
  ASUS Q-Design
  - M.2 Q-Latch
  - Q-DIMM
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink backplate
  - M.2 heatsink
  - VRM heatsink design
  ASUS EZ DIY
  - Clear CMOS button
  - CPU Socket lever protector
  - ProCool II
  - Pre-mounted I/O shield
  - SafeSlot
  - SafeDIMM
  Aura Sync
  - Aura RGB header(s)
  - Addressable Gen 2 header(s)
  ROG STRIX HIVE
  1 x USB Type-C® connects to Motherboard
  1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
  1 x USB 2.0 port(s) (1 x Type-A with BIOS
  FlashBack™)
  1 x Headphone jack with Mic in
  1 x Mic in jack with Optical S/PDIF out
  1 x AI OC button
  1 x FlexKey button
  1 x BIOS FlashBack™  button
  1 x Volume Control Knob with Mute Button
  Q-LED (CPU [red], DRAM [yellow], VGA
  [white], Boot Device [yellow green])
• Software Features
  ROG Exclusive Software
  - GameFirst VI
  - ROG CPU-Z
  - Sonic Studio III + Sonic Studio Virtual
  Mixer + Sonic Suite Companion
  - Sonic Radar III
  - DTS® Sound Unbound
  ASUS Exclusive Software
  Armoury Crate
  - AIDA64 Extreme (60 days free trial)
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - Power Saving
  - Two-Way AI Noise Cancellation
  AI Suite 3
  - Easy Optimization with AI Overclocking
  - TPU
  - DIGI+ VRM
  - Turbo app
  - PC Cleaner
  MyAsus
  Norton 360 for Gamers
  WinRAR
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  FlexKey
  MemTest86
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
• Operating System
  Windows® 11, Windows® 10 64-bit
• Form Factor
  Mini-ITX Form Factor
  6.7 inch x 6.7 inch( 17cm x 17cm)
